Fastener Quick Reference

£9.00

A one page PDF that I use nearly every day.

This reference chart is a practical tool for mechanical designers and engineers.

If you’re like me, you may spend a lot of time looking up the same dimensions for components. This single-page chart brings my most-used metric fastener dimensions together in one clear beautifully designed, easy-to-reference page. It helps keeps the design work flowing without having to scrabble around the same component websites. I keep it right on my desktop.

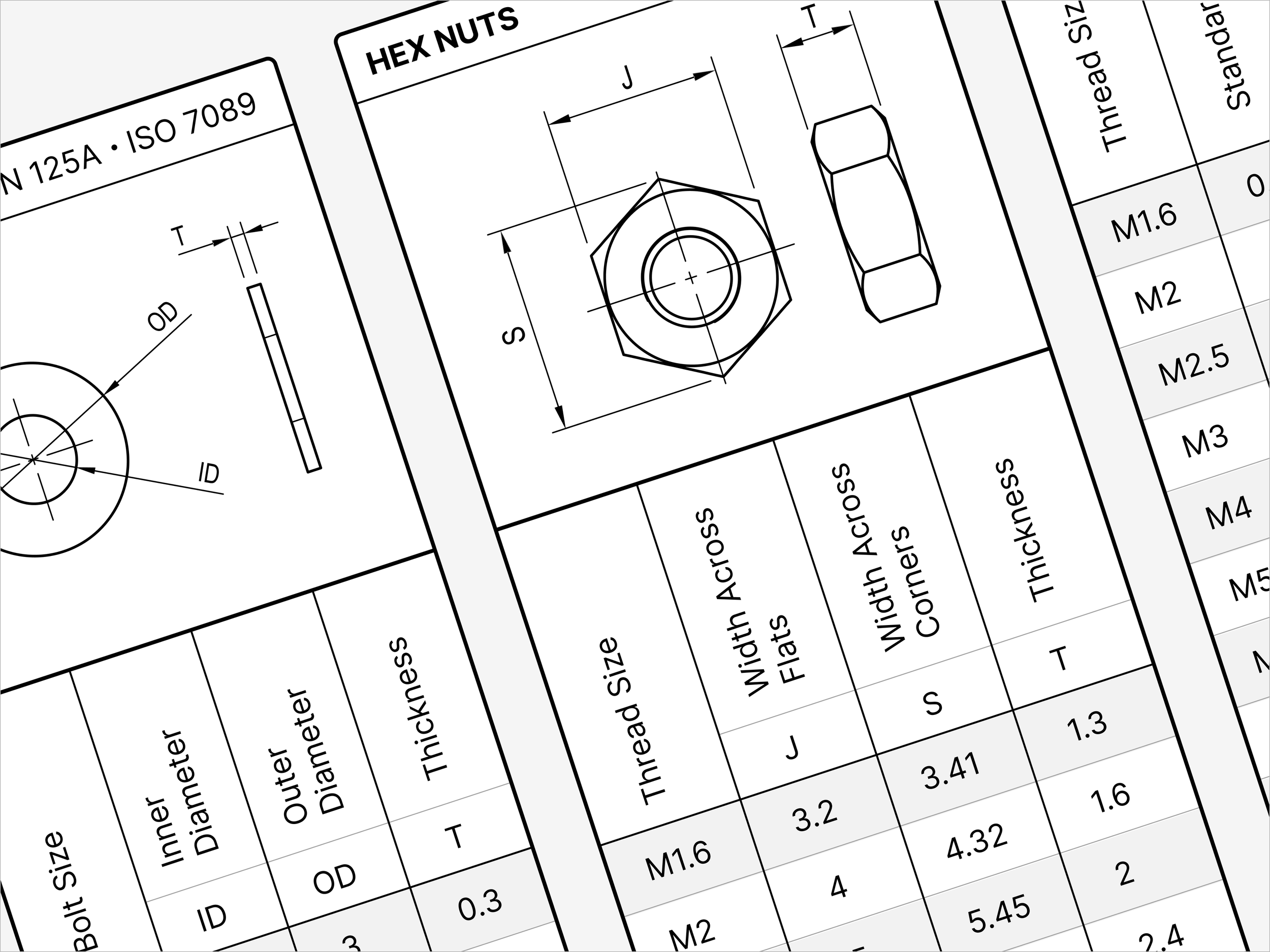

Charts included in the PDF:

  • DIN Socket Head Cap Screws (M1.2–M12) – key dimensional data

  • DIN Hex Nuts – heights, widths across flats, threads

  • DIN Washers – inner / outer diameters and thicknesses

  • Tap Drill Sizes (M1.2–M12) – correct drills for threaded holes

Designed by Elena Gianni.
